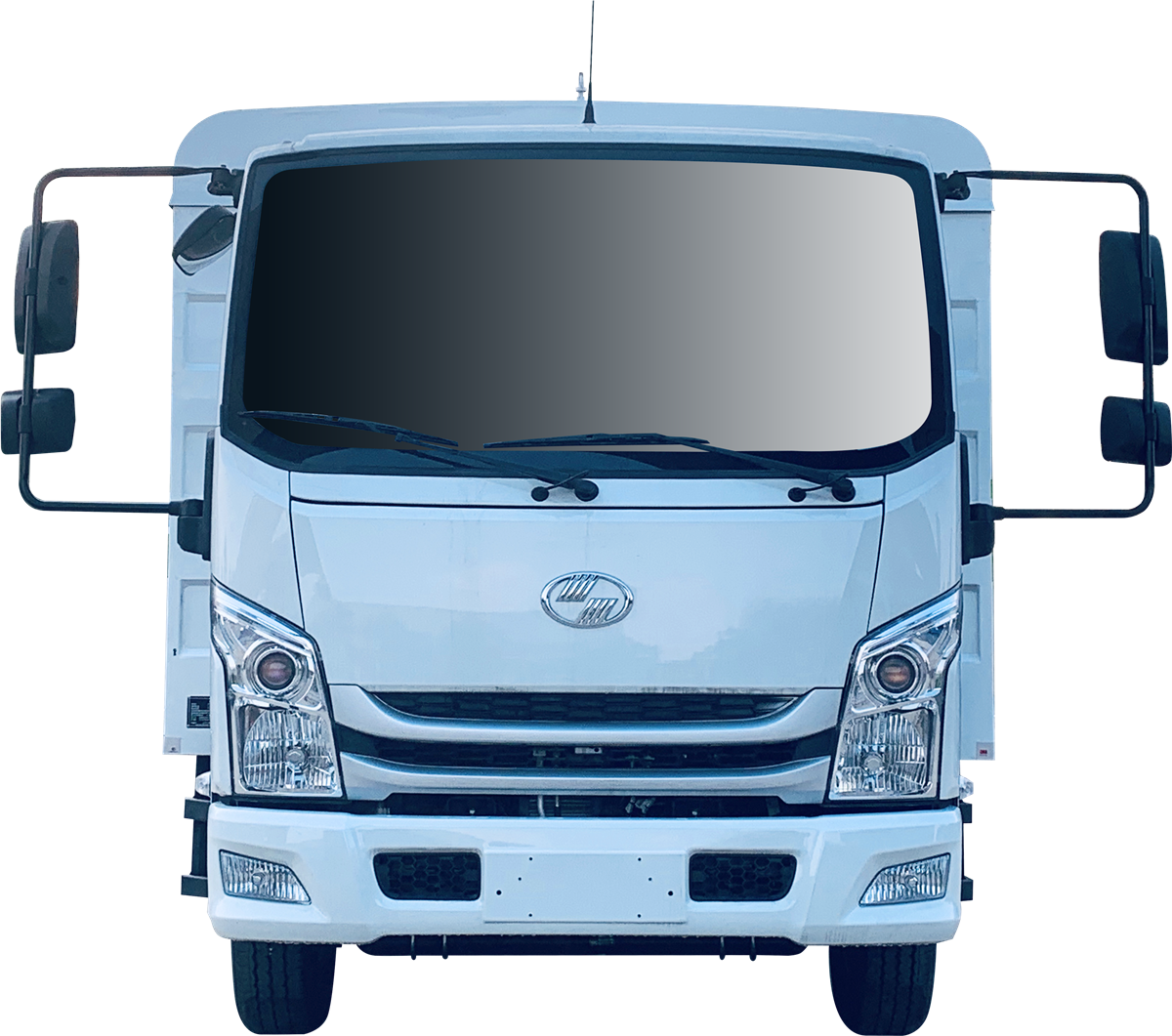

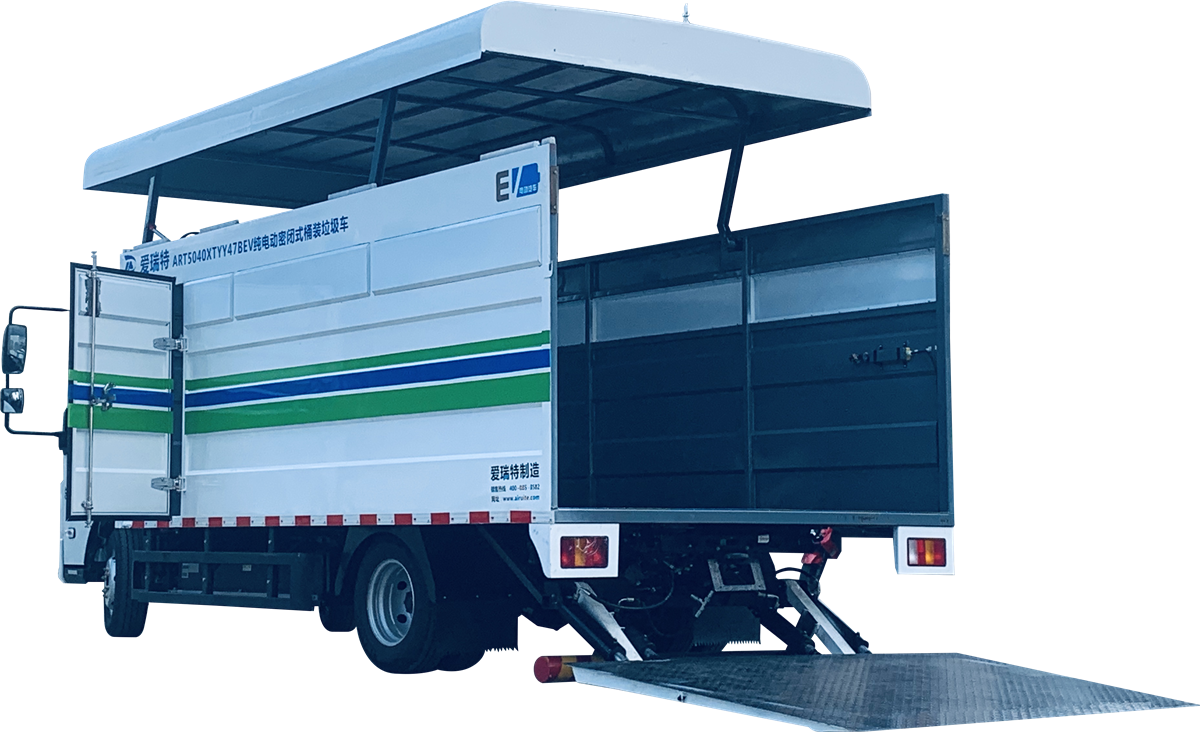

ART5040XTYY47BEV The pure electric closed garbage truck is mainly used for the collection and transportation of classified garbage cans in property communities, towns, commercial areas, scenic spots, schools and other places. It is pure electric operation, low cost and zero emission.

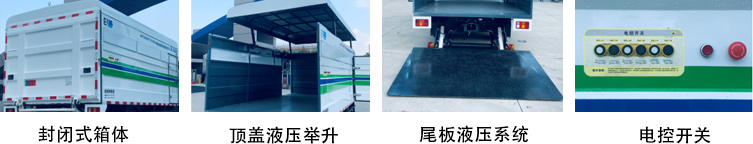

◆ the box body adopts sealed tipping dustbin structure, the top cover is equipped with double cylinder hydraulic lifting device, high-quality high-strength steel plate, electrophoretic rust prevention treatment and corrosion resistance;
◆ tail plate device: double cylinder hydraulic lifting tail plate, which can be controlled by button or wireless remote control;
◆ clean water system the carriage is additionally equipped with a clean water system to facilitate spraying and cleaning of operating tools and dirt outside the carriage.
Entry name | Company | Parameter |
Chassis model / brand | / | SH1047ZFEVNZ4/Leap forward |
Total mass | kg | 4495 |
Curb weight | kg | 3110 |
Wheelbase | mm | 3308 |
Battery brand | / | Ningde times (lithium iron phosphate) |
Battery capacity | kWh | 81 |
Range | km | ≥332（Working condition method） |
Maximum speed | km/h | 90 |
Maximum climbing gradient | % | 20 |
Minimum turning radius | m | 6 |
Quantity of barrels | 個 | 15（240L Trash）/9(660L Trash) |
Tail plate cycle time | s | ≤20 |
Tail plate lifting capacity | kg | 1000 |
Overall dimension(L × W × H) | mm | 5990*2175*2600 |
